The Rebirth
Merlin NEO
Experience vinyl at its finest
Compact, precision-engineered and unmistakably audiophile, the Merlin NEO combines Acoustic Signature’s advanced vibration-control technologies, isolated motor design and DTD® bearing for exceptionally refined vinyl playback in an elegant, space-efficient package.
Technical Specs
Discover the engineering and precision behind the Thirty NEO, with specifications that define its performance, construction, and capabilities.
AC-motors:
1 (external motor unit)
Drive system:
Belt drive with speed fine adjustment
AVC:
Level 1
Speed range:
33 1/3 RPM and
45 RPM
Power adapter:
External power supply
(100 – 260 V AC, 50 / 60Hz. / 24 V DC)
(WxDxH: 6 x 12 x 5.5cm; 0.2 kg)
(100 – 260 V AC, 50 / 60Hz. / 24 V DC)
(WxDxH: 6 x 12 x 5.5cm; 0.2 kg)
Control panel:
Integrated in motor unit

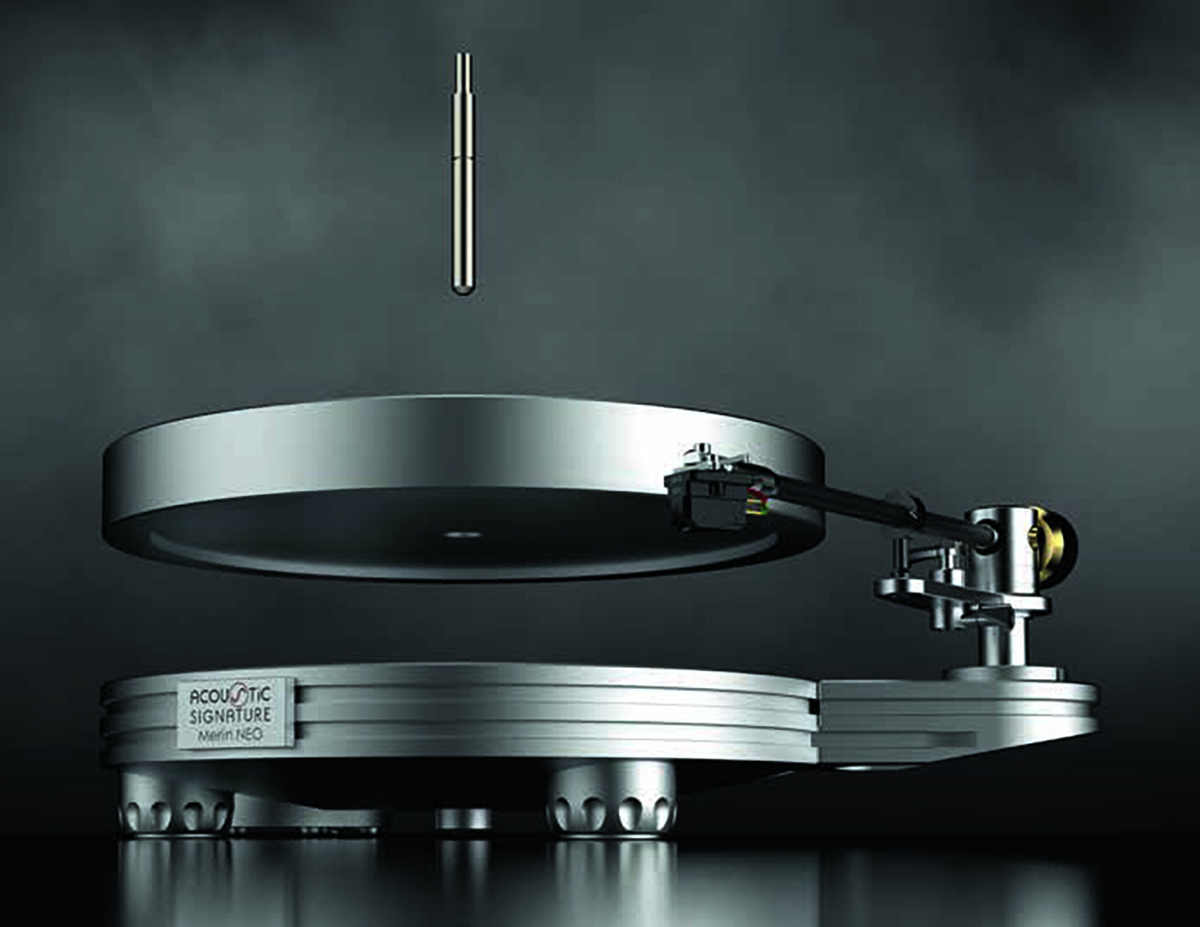

Bearing:
High-precision Dura Turn Diamond® bearing
Tone arm base:
1 x Rega
Tone arm compatibility:
TA-500 NEO 9 inch tonearm
Maximum number of tone arms:
1
Platter:
Aluminum anodized
(Ø 300 x 34 mm / 5,8 kg,
Ø 11.82″ x 1.33″ / 12.8 lbs)
(Ø 300 x 34 mm / 5,8 kg,
Ø 11.82″ x 1.33″ / 12.8 lbs)
Silencer:
–
Chassis:
One piece alumin aluminum chassis
(Ø 300 x 50 mm / 11.8″ x 1.96″)
(Ø 300 x 50 mm / 11.8″ x 1.96″)
Feet:
3 height-adjustable gel-damped aluminum feet
Dimensions (WxDxH):
474 x 318 x 140 mm
18.7″ x 12.5″ x 5.5″
18.7″ x 12.5″ x 5.5″
Weight:
15 kg / 33 lbs
Available finishes

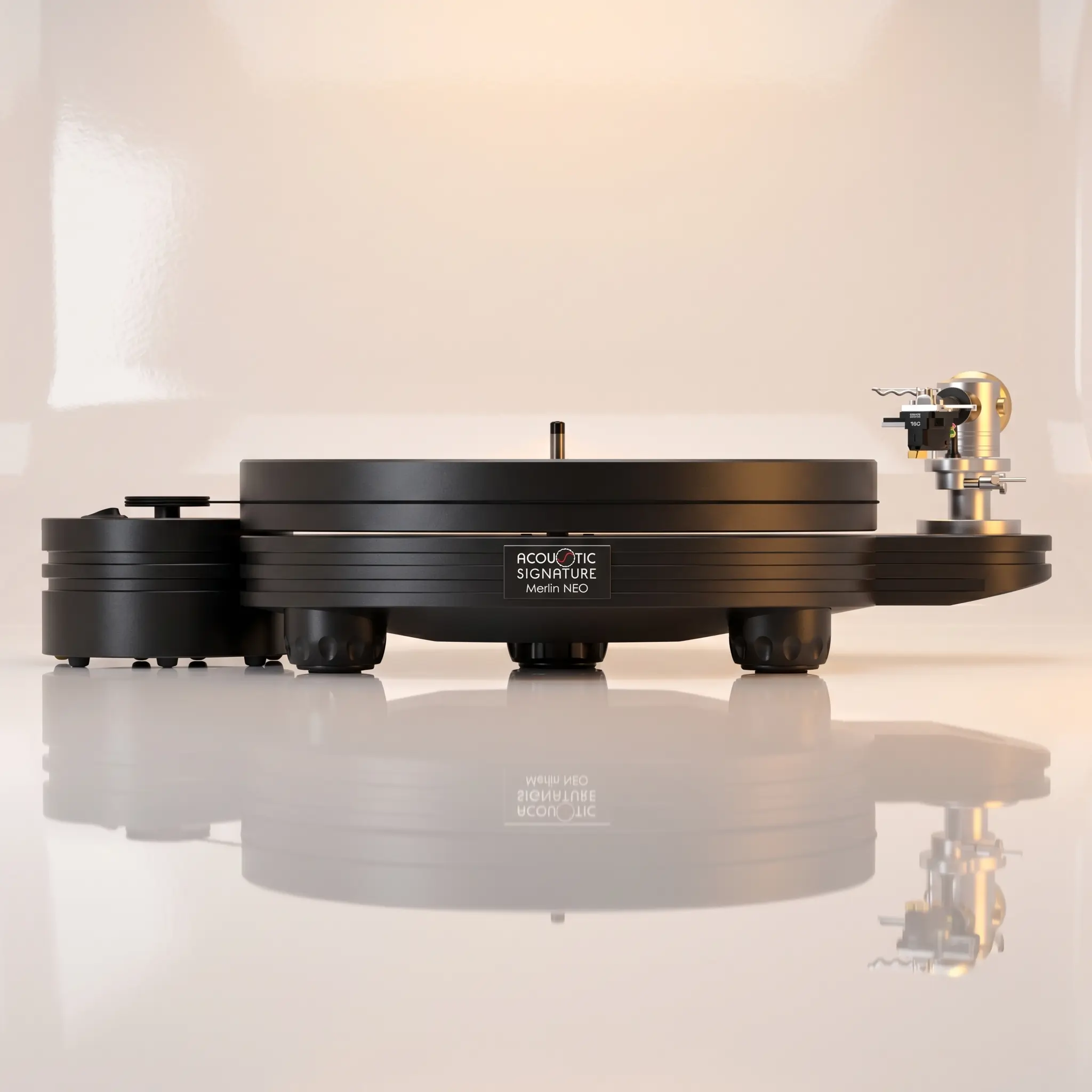

Chassis and platter:

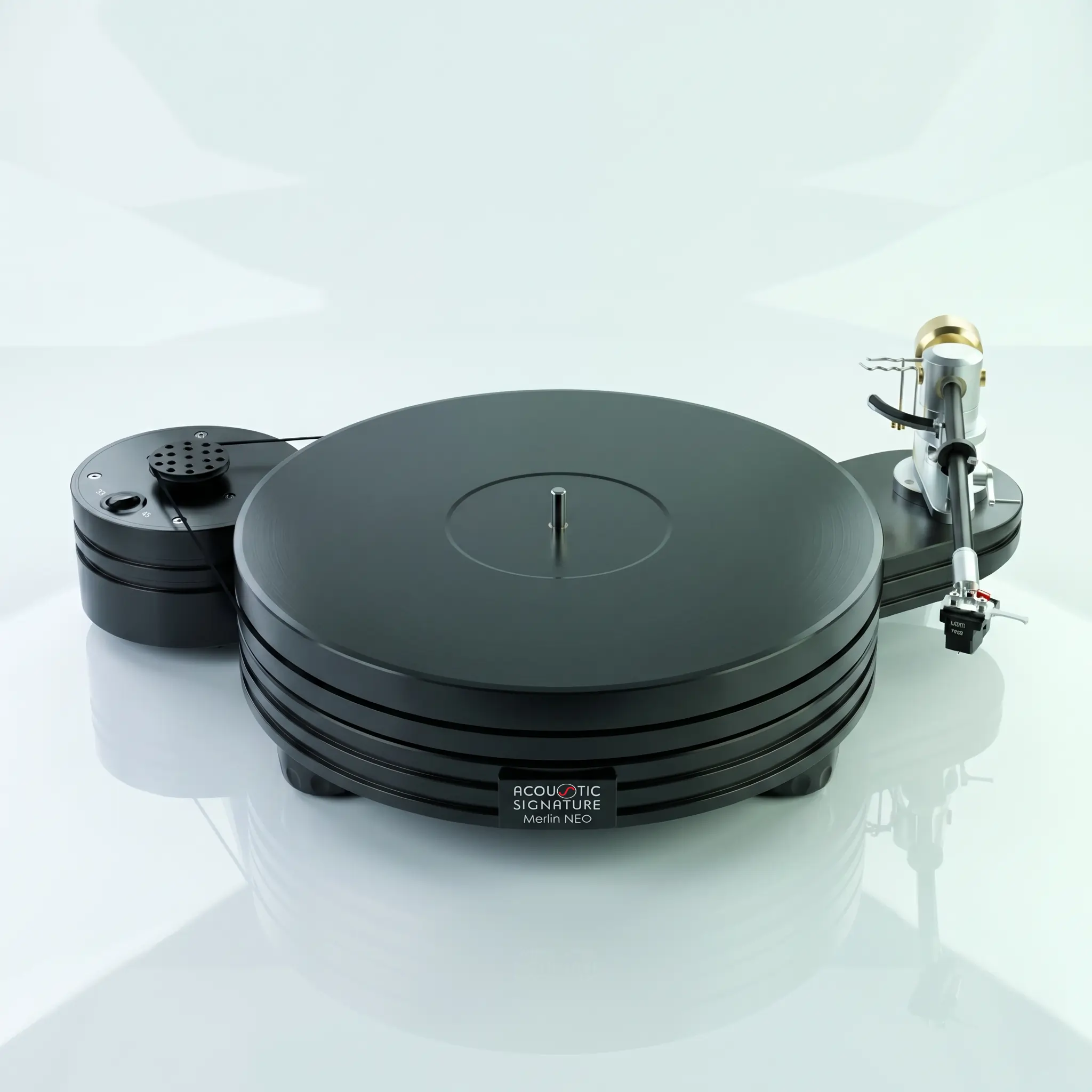

Black (anodized) with gold or chrome accents,

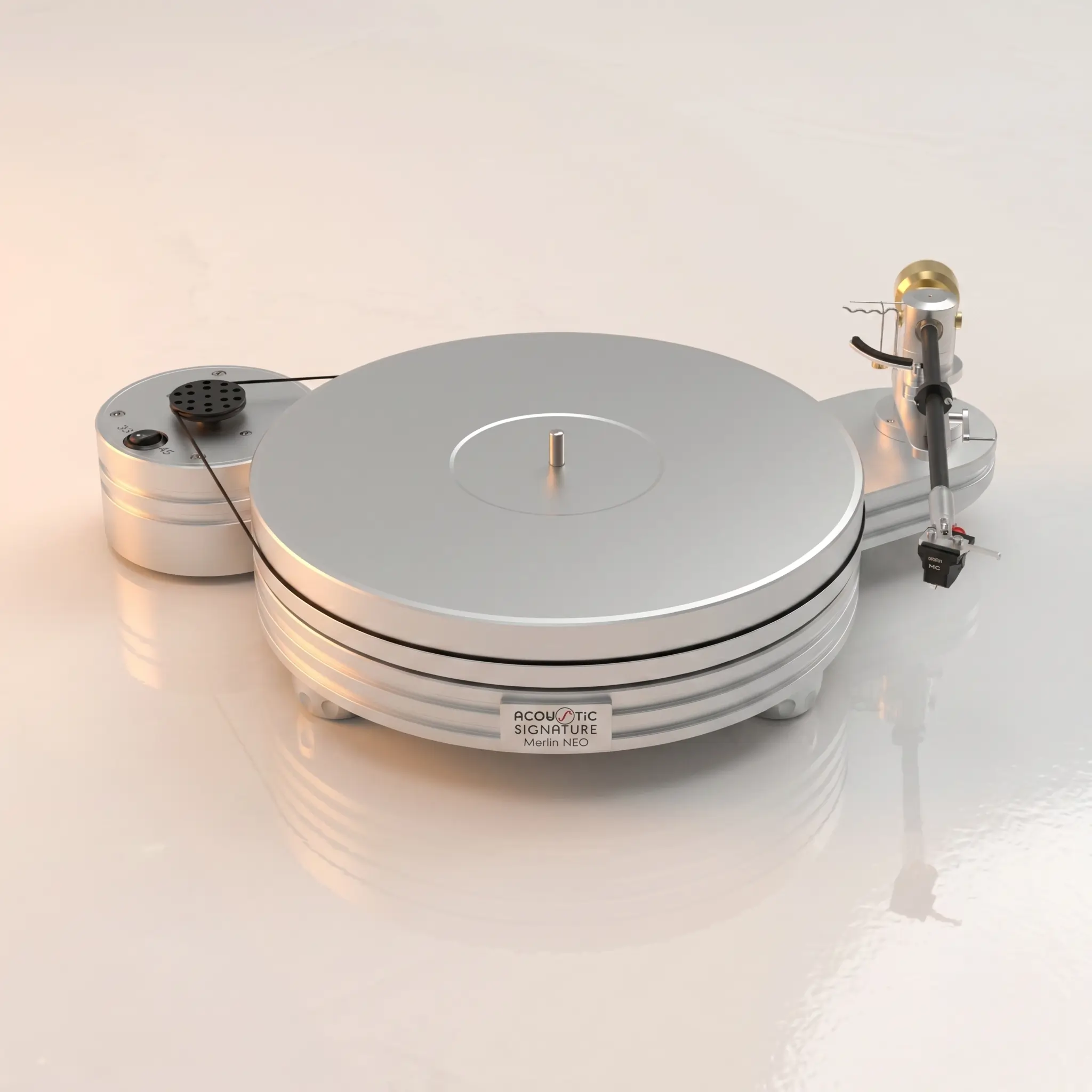

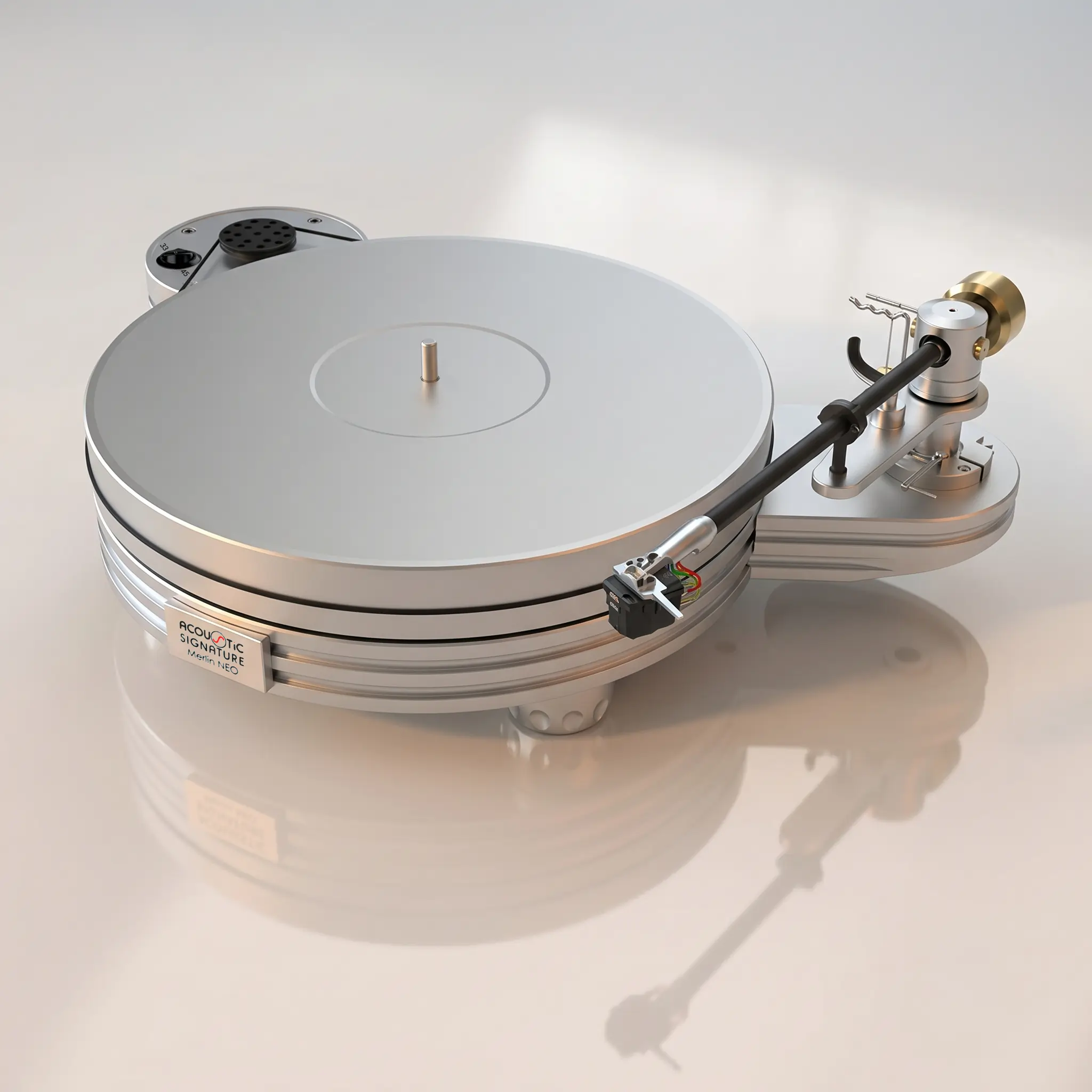

Silver (anodized) with gold or chrome accents
Silencer: Polished brass,
optional: 24 carat gold-plated or polished chrome
